Cost Analysis

Measured wall-clock costs for the IFT bilevel optimization pipeline, identifying the true bottleneck and key scaling behaviors.

All measurements use a 4-turbine V80 + NOJ deficit setup with 2 neighbors and a single wind direction (270deg, 9 m/s). Reproduce with:

pixi run python scripts/explore_cost_tradeoffs.py

The Bilevel Problem

The bilevel optimization has two nested levels:

OUTER: max_{neighbors}  regret(neighbors)
         where regret = AEP_conservative(neighbors) - AEP_liberal(neighbors)

INNER: AEP_conservative(neighbors) = AEP(x*(neighbors), neighbors)
         where x* = argmin_x  -AEP(x, neighbors)   s.t. boundary, spacing

The liberal layout is optimized in isolation (maximizing AEP without neighbors), then evaluated with neighbors present when computing regret. Both terms use the same neighbor configuration.

One call to value_and_grad(compute_regret)(neighbor_params) requires:

• Forward pass: Run topfarm_sgd_solve (constrained SGD via jax.lax.while_loop), then evaluate AEP at the optimum.
• Backward pass (IFT): At the converged optimum (x*, y*), compute the implicit gradient without re-running the inner loop:
• Cross-derivative Jacobian d^2L/d(x,y)d(params) via central finite differences (2 x n_params grad evaluations)
• Conjugate Gradient solver for the adjoint equation (H + lambda*I) v = g (up to 100 CG iterations, each doing 1 HVP via 2 grad evaluations)
• Matrix-vector product v^T @ Jacobian (no additional sim calls)

XLA Compilation via while_loop

The inner SGD solver uses jax.lax.while_loop, which JAX compiles into a single fused XLA program. The entire multi-thousand-step optimization loop runs as compiled machine code, not as Python-level iteration.

Metric	Value
Single wake sim forward	60 ms
Single grad evaluation (Python-level)	195 ms
Naive estimate for 500-step SGD (500 x 2 x 195ms)	195 s
Actual measured 500-step SGD	0.44 s
XLA speedup	~357x

topfarm_sgd_solve is already effectively JIT-compiled through while_loop. There is no need for an explicit @jax.jit decorator. The XLA compiler fuses the loop body, eliminating Python dispatch overhead for each iteration.

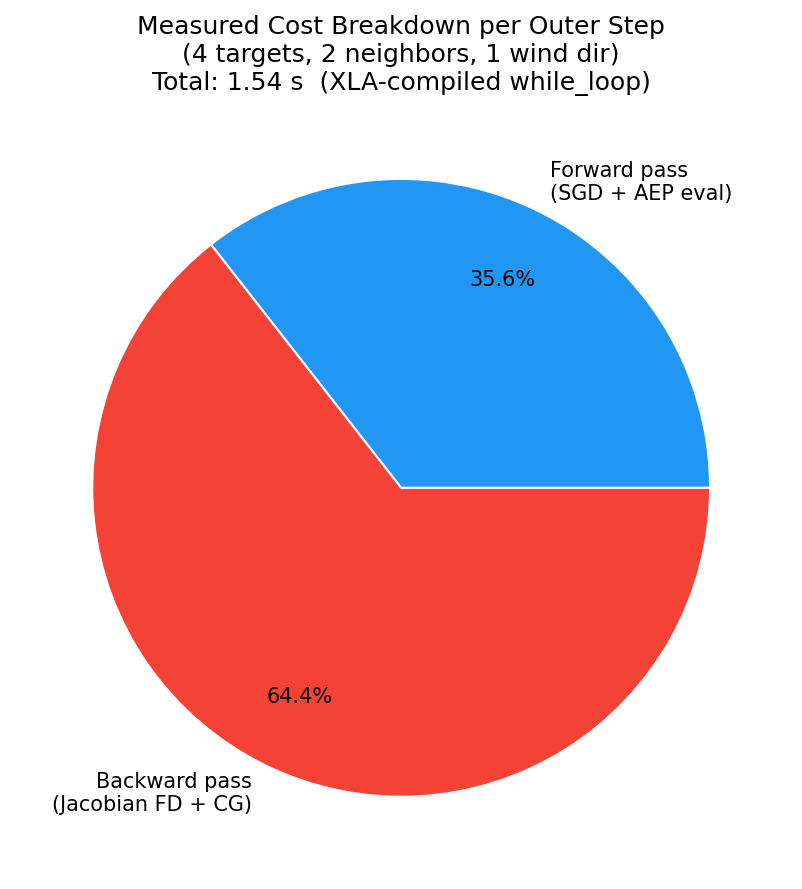

Measured Cost Breakdown

For a single outer gradient step (4 targets, 2 neighbors, 500 max inner iters):

Component	Wall-clock	Share
Forward pass (SGD + AEP eval)	0.55 s	36%
Backward pass (Jacobian FD + CG)	0.99 s	64%
Total	1.54 s	100%

The backward pass dominates. This is the opposite of what the naive operation-count model predicts. The forward SGD is cheap because while_loop fuses it into XLA. The backward pass is more expensive because:

• The Jacobian FD loop (vmap over compute_jac_col) evaluates jax.grad(total_obj) at 2 x n_params perturbed parameter vectors
• The CG solver runs its own while_loop with HVP evaluations at each iteration
• Each individual grad/HVP call goes through the wake sim's fixed_point custom_vjp

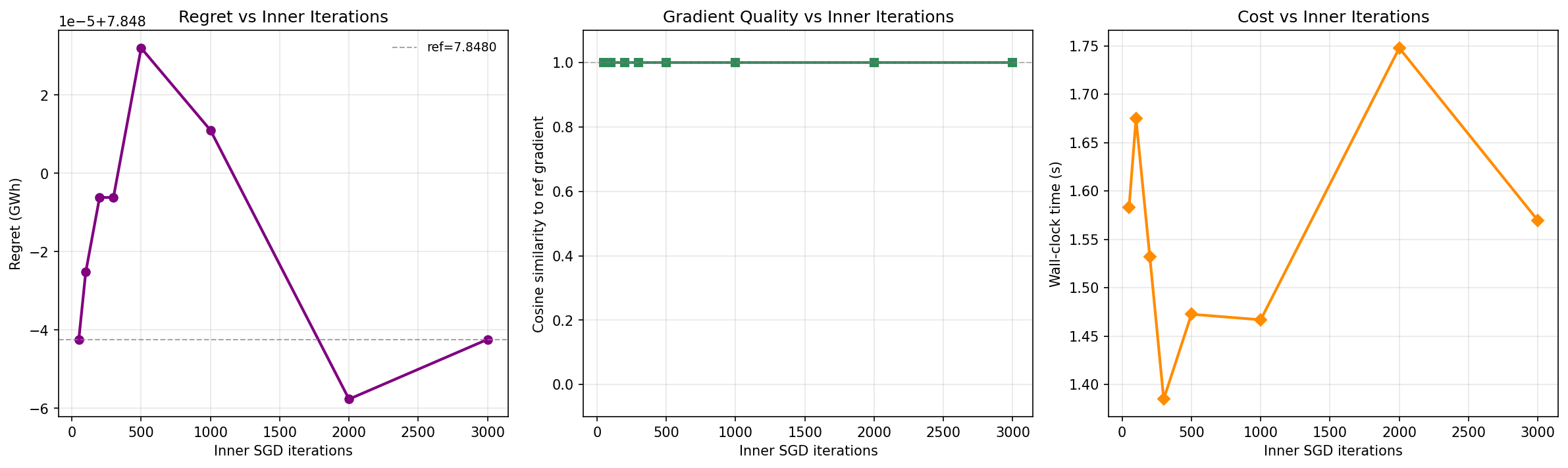

Inner Iteration Sweep

Varying max_iter from 50 to 3000 has negligible effect on both regret accuracy and gradient quality for this problem:

max_iter	Regret (GWh)	Gradient cosine sim	Wall-clock
50	7.8480	1.0000	1.58 s
100	7.8480	1.0000	1.67 s
300	7.8480	1.0000	1.38 s
500	7.8480	1.0000	1.47 s
3000	7.8480	1.0000	1.57 s

The inner SGD converges well before 50 iterations for this 4-turbine problem (the while_loop exits early via the tolerance check). Cost is flat because the backward pass dominates and is independent of max_iter.

Implication: For larger problems where convergence is slower, reducing max_iter could save forward-pass time without degrading gradient quality, as long as the inner solver reaches an approximate optimum.

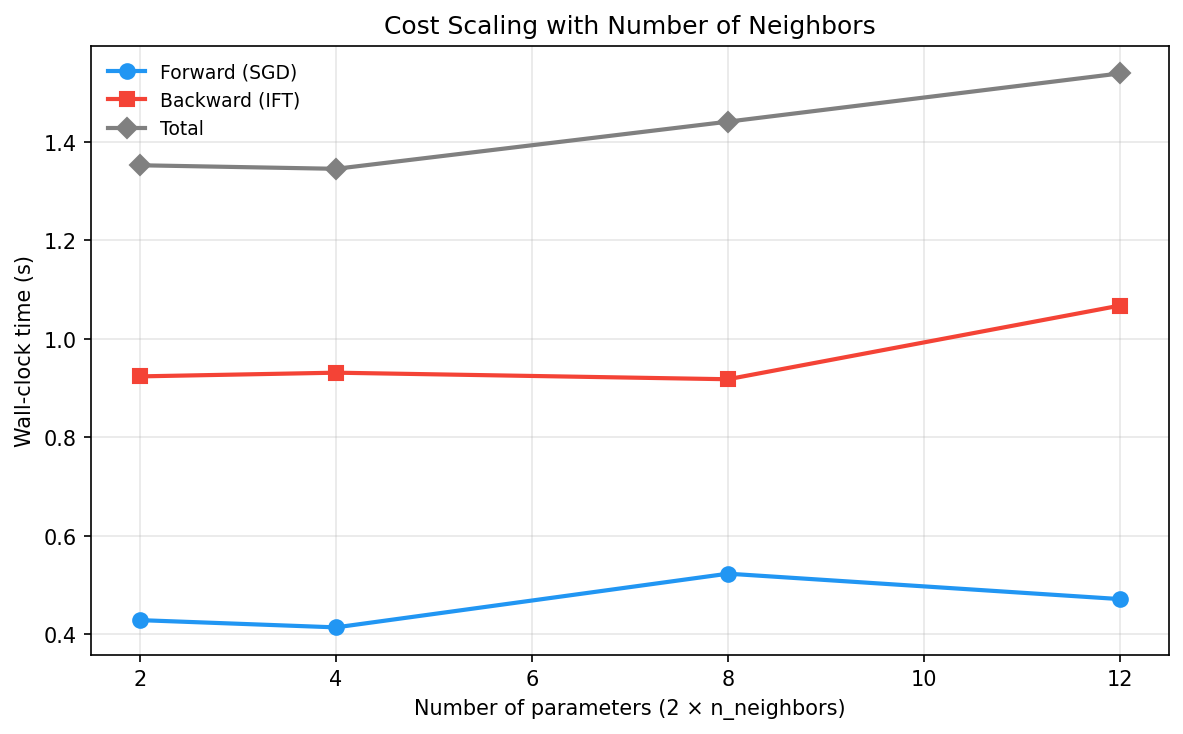

Neighbor Count Scaling

How does cost scale with the number of neighbor parameters?

Neighbors	Params	Forward	Backward	Total
1	2	0.43 s	0.92 s	1.35 s
2	4	0.41 s	0.93 s	1.35 s
4	8	0.52 s	0.92 s	1.44 s
6	12	0.47 s	1.07 s	1.54 s

• Forward cost is nearly constant: neighbors are just additional inputs to the wake sim, and the SGD loop complexity is unchanged.
• Backward cost grows slowly: the Jacobian FD requires 2 x n_params grad evaluations, but vmap parallelizes them. Going from 2 to 12 parameters increases backward cost by only ~16%.

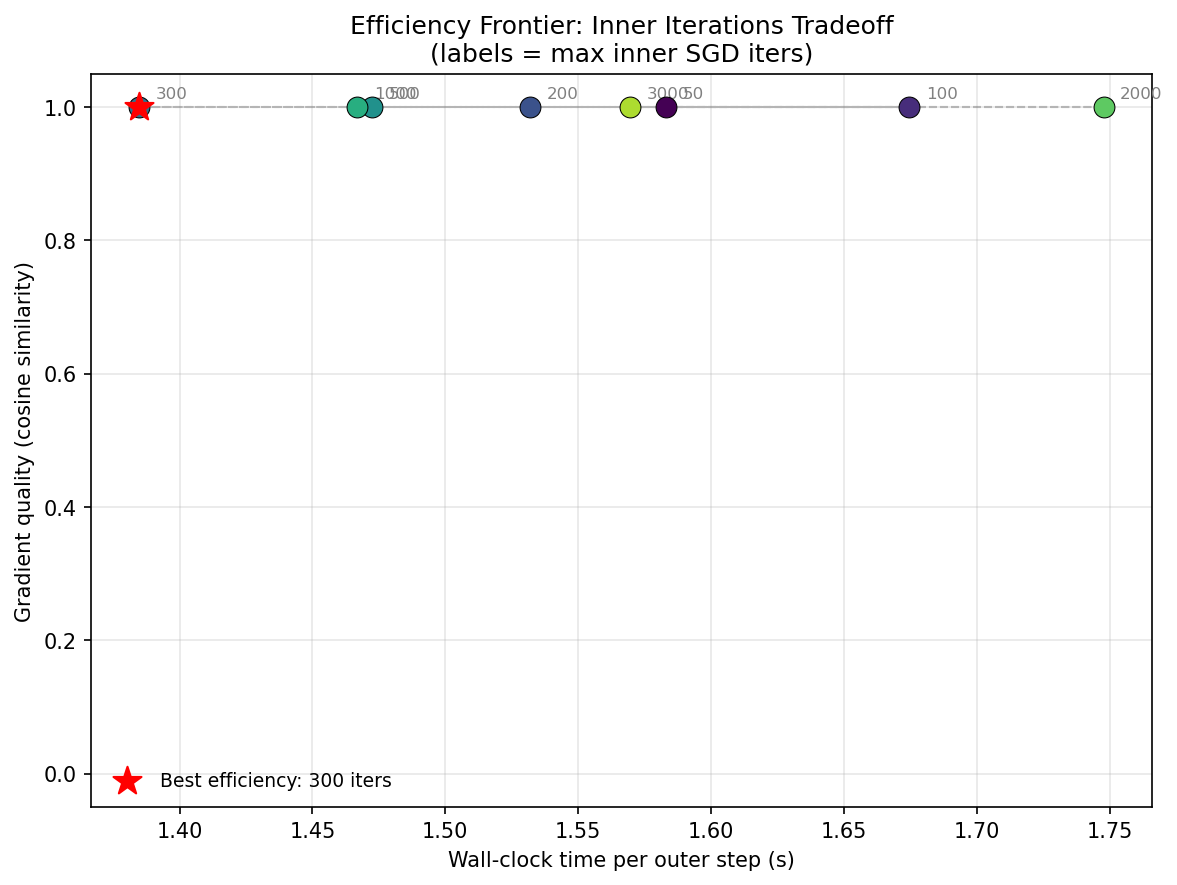

Efficiency Frontier

The "efficiency frontier" plots gradient quality (cosine similarity to a high-iteration reference) against wall-clock cost:

For this problem, all points sit at cosine similarity = 1.0, so the sweet spot is simply the fastest option (300 inner iterations at 1.38 s). For larger problems where convergence is slower, this plot would reveal the point of diminishing returns.

Scaling to Production

These benchmarks use a small problem (4 turbines, NOJ deficit, 1 wind direction). For the production setup (16 turbines, BastankhahGaussian deficit, multiple wind directions):

• Wake sim cost scales with n_turbines^2 (pairwise deficit computation) and linearly with n_wind_directions
• Inner SGD iterations will increase (larger search space, slower convergence)
• Backward pass cost scales linearly with n_params (Jacobian FD) but the CG solver may need more iterations for larger Hessians
• XLA compilation remains effective: while_loop compiles regardless of problem size, though each compiled iteration is more expensive

Expected production cost: Roughly 10-50x the V80+NOJ benchmarks, putting a single outer gradient step at ~15-75s and a 50-iteration run at ~12-62 min for single-start IFT.
