DEI Analysis: A = 0.02 (Narrow Wakes)

This page documents the Danish Energy Island regret analysis using the TurboGaussian wake model with A=0.02.

See also: A=0.10 Analysis | DEI Case Study | Methodology

Configuration

Parameter Value
Wake Model TurboGaussianDeficit
A (expansion) 0.02
ct2a ct2a_mom1d
ctlim 0.96
Superposition SquaredSum
Ambient TI 0.06
Optimization 50 starts × 2000 iterations

A=0.02 produces narrow wake cones, meaning wake effects persist further downstream but affect a smaller lateral area.

Summary Results

Case Regret (GWh) Regret (%) Pareto Points
Farm 1 (SW, 214°) 18.19 0.34% 2
Farm 2 (W, 262°) 10.28 0.20% 2
Farm 3 (NW, 335°) 0.00 0.00% 1
Farm 4 (N, 349°) 0.00 0.00% 1
Farm 5 (NE, 19°) 0.00 0.00% 1
Farm 6 (E, 57°) 2.48 0.05% 2
Farm 7 (SE, 89°) 0.00 0.00% 1
Farm 8 (S, 163°) 28.51 0.54% 3
Farm 9 (SSW, 186°) 1.71 0.03% 2
All 9 combined 11.52 0.24% 5

Key finding: Farm 8 (South) causes the largest individual regret at 28.51 GWh. With narrow wakes (A=0.02), multiple farms show non-zero regret.

Individual Neighbors Analysis

Individual Farms Pareto frontiers for each of the 9 neighbors. Blue circles = liberal strategy (ignore neighbor), red squares = conservative strategy (consider neighbor). Black outlines indicate Pareto-optimal layouts.

Observations

  • Farm 8 (S, 163°): Highest regret at 28.51 GWh (0.54% of AEP)
  • Farm 1 (SW, 214°): Second highest at 18.19 GWh (0.34%)
  • Farm 2 (W, 262°): 10.28 GWh from the dominant wind direction
  • Farms 3, 4, 5, 7: Zero regret - layout optimization is unaffected by these neighbors

Regret by Direction

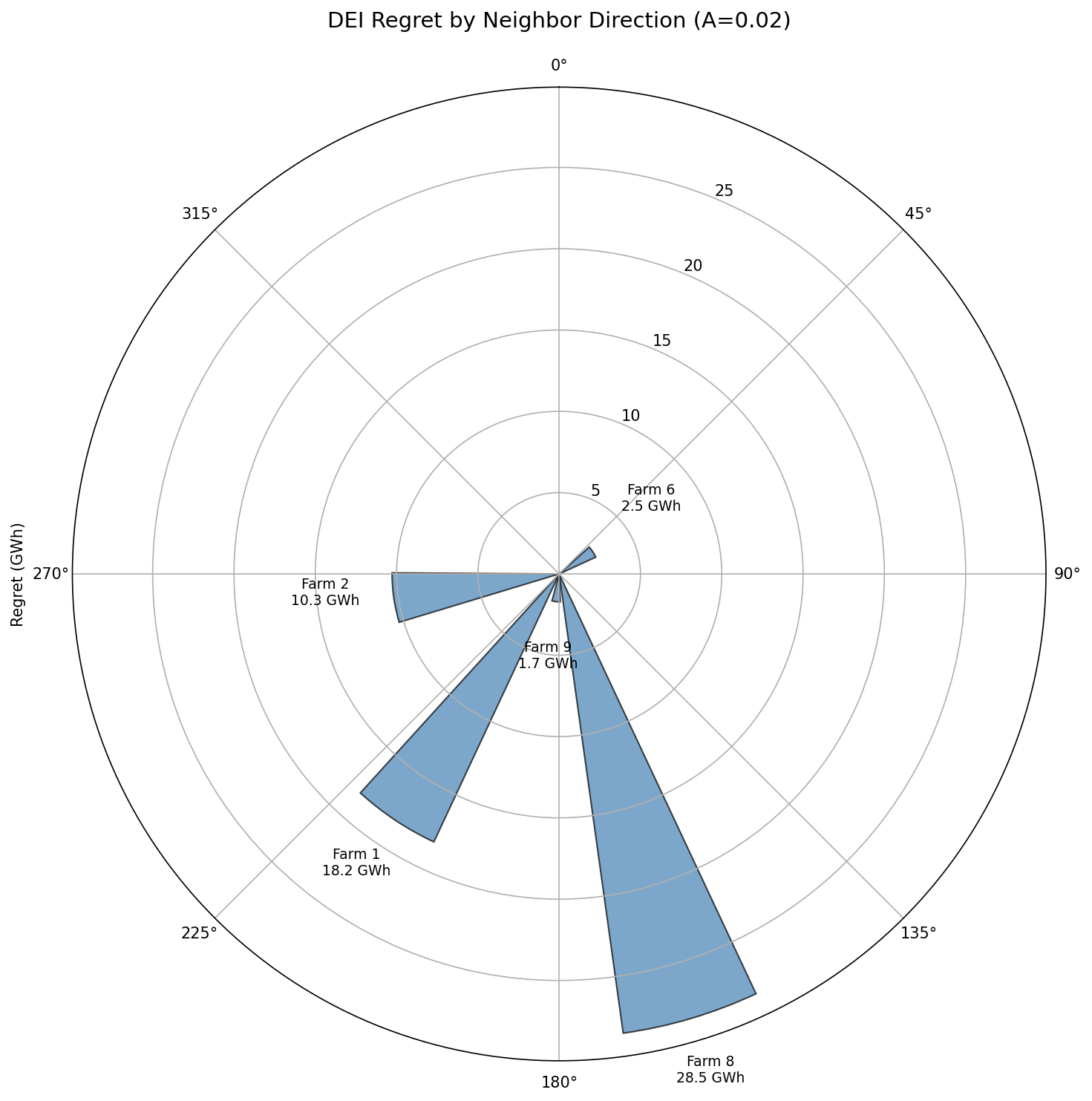

Polar Regret Design regret varies strongly with neighbor direction. Southern neighbors (Farm 8) cause the most regret.

The polar plot shows that regret is concentrated in the southern sector (163-214°), not the dominant western wind direction. This is the "ambush effect" - the liberal layout is already optimized for westerly wakes.

All Neighbors Combined

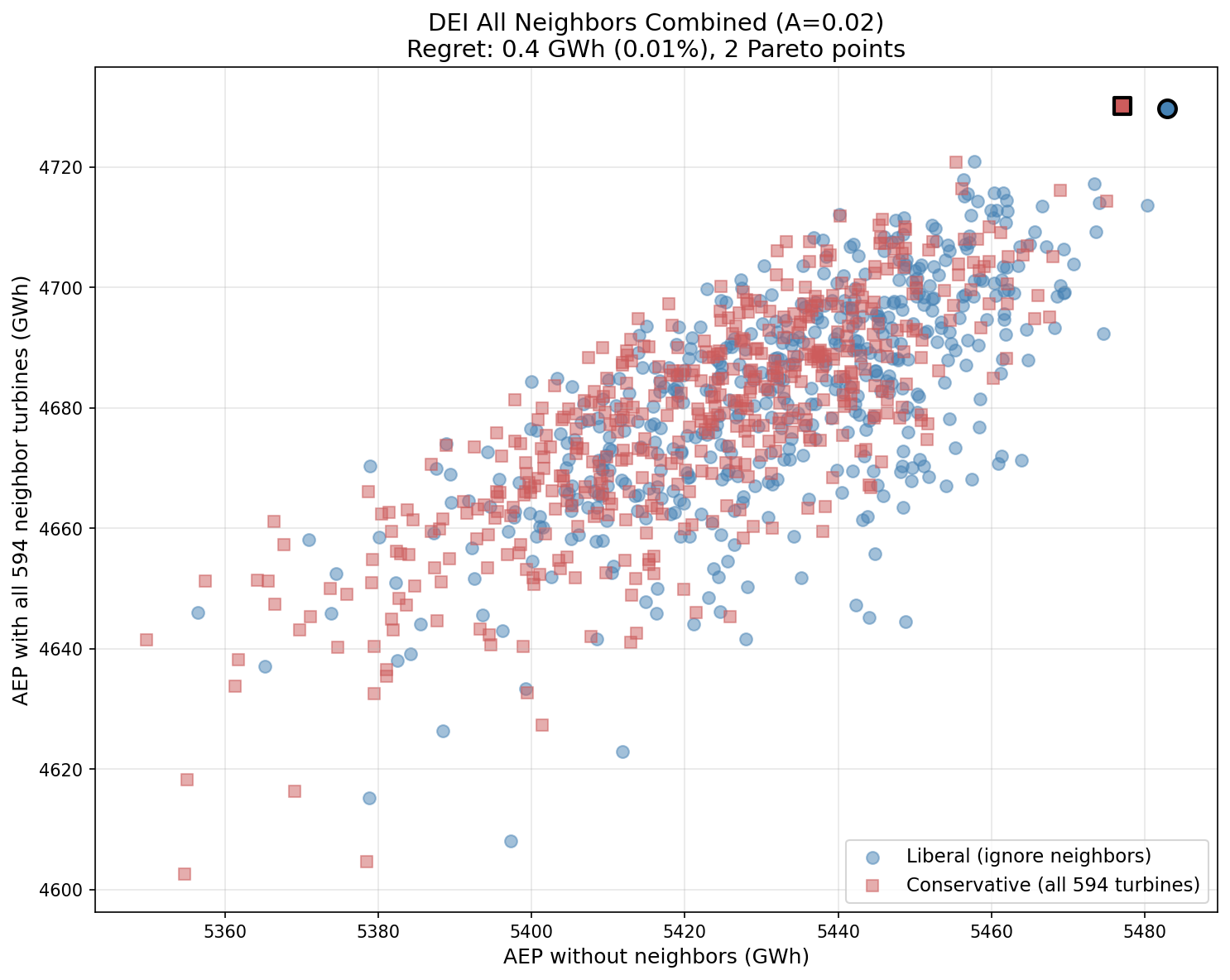

Combined Pareto Pareto frontier when all 594 neighbor turbines are present. The combined regret (11.52 GWh) is lower than Farm 8 alone, suggesting the ring geometry partially mitigates individual neighbor effects.

Layout AEP Alone AEP with All 594 Wake Loss
Liberal-optimal 5469 GWh 4698 GWh -14.1%
Conservative-optimal 5453 GWh 4710 GWh -13.6%
Regret 11.52 GWh

The combined case shows 5 Pareto-optimal layouts spanning 11.52 GWh of regret.

Comparison with A=0.10

Metric A=0.02 A=0.10
Wake cone Narrow Wide
Farm 8 regret 28.51 GWh ~24 GWh
Combined regret 11.52 GWh 9.70 GWh
Farms with regret 5 of 9 5 of 9

Narrower wakes (A=0.02) produce higher regret because wake effects are more concentrated and harder to avoid through layout optimization.

PyWake Verification

To confirm these results are not artifacts of the pixwake implementation, we evaluated the pixwake-optimized layouts using PyWake with identical wake model configuration (TurboGaussianDeficit, A=0.02, SquaredSum superposition, no turbulence model).

Farm 8 Verification

Evaluating all 100 pixwake layouts in PyWake:

Metric PyWake pixwake Difference
Liberal-opt AEP (alone) 5455.7 GWh 5469.0 GWh -0.24%
Liberal-opt AEP (w/neighbor) 5276.9 GWh 5294.2 GWh -0.33%
Conservative-opt AEP (alone) 5439.0 GWh 5453.1 GWh -0.26%
Conservative-opt AEP (w/neighbor) 5306.3 GWh 5322.7 GWh -0.31%
Regret 29.49 GWh 28.51 GWh +1.0 GWh

Combined Case Verification

Evaluating the 5 pixwake Pareto-optimal layouts in PyWake:

Metric PyWake pixwake Difference
Regret 9.07 GWh 11.52 GWh -2.5 GWh

Conclusion: PyWake confirms the design regret found by pixwake. AEP values match within ~0.3%, and both implementations find ~10-30 GWh of regret depending on the case. The tradeoffs are real and not artifacts of the pixwake implementation.

Verification Script

pixi run python scripts/verify_A0.02_pywake.py --farm=8
pixi run python scripts/verify_A0.02_pywake.py --combined

Data Files

Results are stored in analysis/dei_A0.02/:

  • layouts_farm{1-9}.h5 - Optimized layouts for each neighbor case
  • layouts_combined.h5 - Optimized layouts for all-neighbors case
  • dei_single_neighbor_turbopark_farm{1-9}.json - Individual farm results
  • dei_single_neighbor_turbopark_farm.json - Combined case results

Replication

# Run all farms in parallel batches
for farm in 1 2 3 4 5 6 7 8 9; do
    pixi run python scripts/run_dei_single_neighbor.py \
        --n-starts=50 --max-iter=2000 \
        --A=0.02 --farm=$farm --skip-combined \
        -o analysis/dei_A0.02
done

# Run combined case (memory intensive)
pixi run python scripts/run_dei_single_neighbor.py \
    --n-starts=50 --max-iter=2000 \
    --A=0.02 --only-combined \
    -o analysis/dei_A0.02
